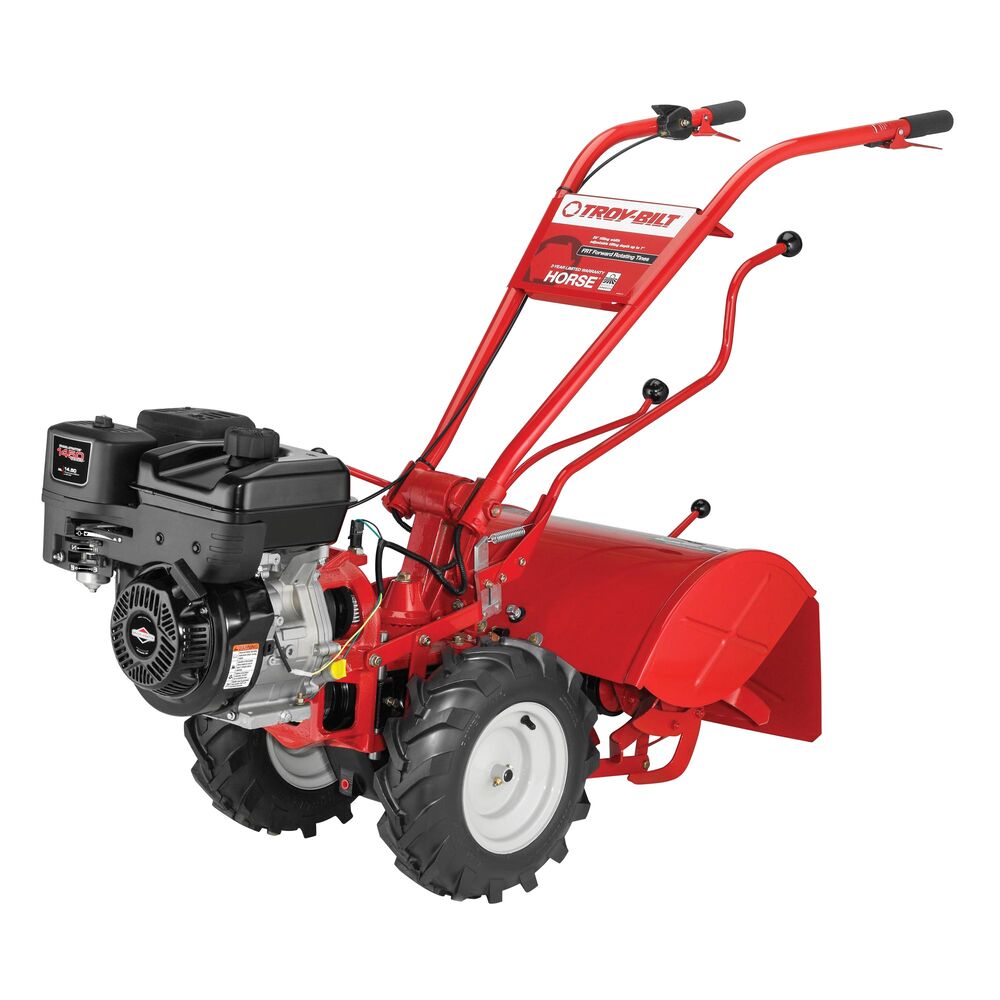

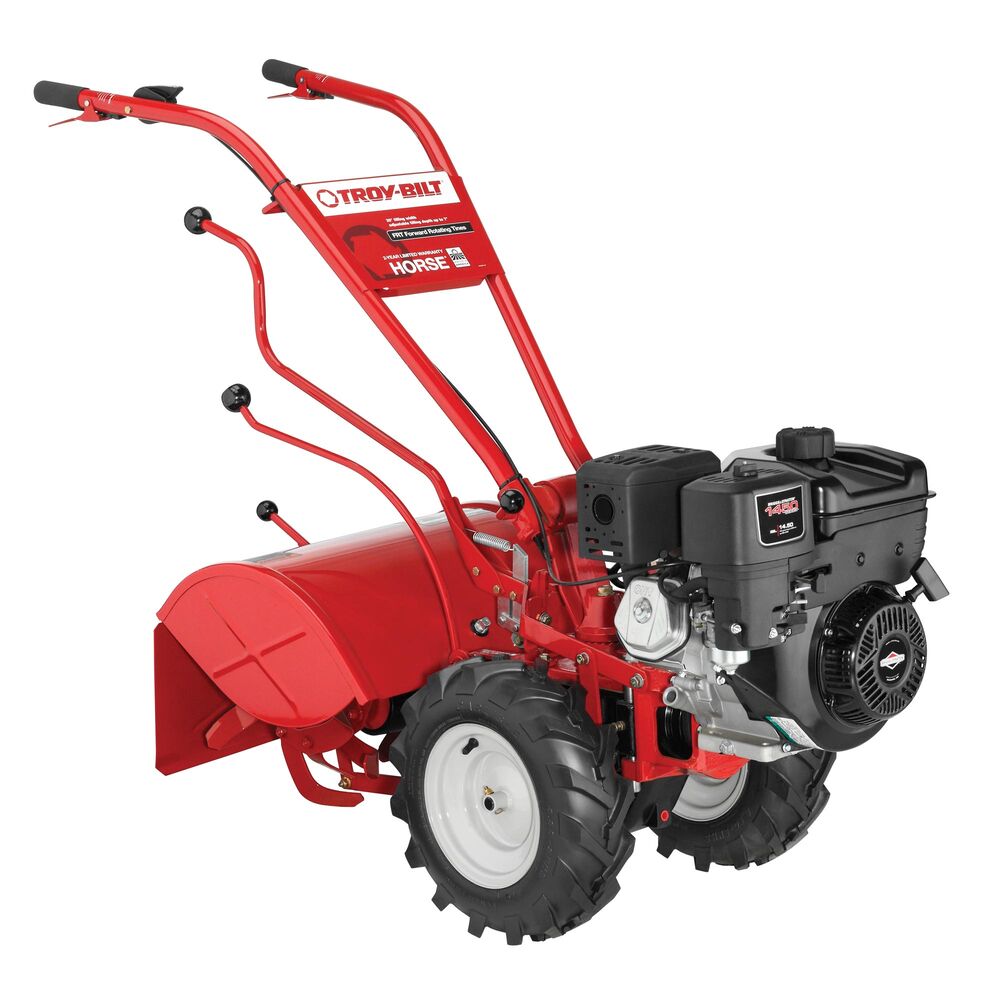

Troybilt Horse Garden Tiller
To bring those ideas in your head to life, you need a tiller that works like this Horse. The Horse garden tiller can do all your heavy duty garden chores, including groundbreaking in new beds or premium soil preparation in existing ones.
- Forward-rotating tines for premium garden soil preparation
- 4 forward, 1 neutral and 2 reverse speeds
- 20" tilling width
- 12" tine diameter
- Adjustable tilling depth up to 7"
- Standard power take-off (PTO)
- 16" ag tires
- Full-sided tine shields for operator protection
- Accepts a wide variety of optional attachments
- 306cc* Briggs & Stratton OHV 1450 Series engine
SPECS
Engine
- Engine BrandBriggs & Stratton®
- Engine ModelOHV 1450 Series
- Engine Displacement306cc
- Starter TypeStandard Recoil
- Engine Oil Capacity26 oz
Drive System
- TransmissionCast iron transmission with bronze gear-drive
Controls
- HandleAdjustable Plow Style
Dimensions
- Dimensions L/W/H62.5"(L) x 27"(W) x 37.5"(H)
- Weight (approx.)361 lbs
Additional Specifications
- Recommended Oil TypeSAE30 (included)
- Model Number21A-682T766
Specifications
- Forward/Reverse Speeds4 forward / 1 neutral / 2 reverse
- Tilling DepthAdjustable up to 7"
- Tilling Width20"
- Tine Rotation DirectionForward-rotating
- Tines12" diameter Bolo
- Wheels16" x 4" pneumatic Ag tread
Warranty
- Warranty2-Year limited manufacturer's warranty - refer to online operator's manual for exclusions. Limited lifetime warranty on transmission. 2-year warranty on engine.
Tiller Tine Specifications
- Tine Rotation DirectionForward-rotating
